Sugar Syrup Filter Press
A Sugar Syrup Filter Press refers to industrial filtration equipment designed to filter out suspended impurities and solid particles in the sugar syrup during sugar processing and food manufacturing operations. Filtration serves as the way to achieve better syrup clarity and the means to prepare syrup for further production steps. Such type of equipment may be applied in industries that require efficient filtration, good solid-liquid separation, and reliable performance of the equipment. It is possible to choose the equipment design based on such aspects as syrup characteristics, filtration capacity, pressure, temperature, and clarity of the syrup.
At Akshar Engineering Works, we know how important proper filtration is during the process of sugar processing, when the removal of suspended impurities may help increase process consistency and improve the quality of products. Akshar Engineering Works was established in 1996 and is situated in Chhatral GIDC, Gujarat, India. We specialize in designing industrial filtration equipment taking into account engineering and application aspects. The Sugar Syrup Filter Presses of Akshar Engineering Works are developed to meet filtration needs of sugar mills, syrup processing plants, food manufacturing plants, and other industries.
Advantages of Sugar Syrup Filter Press
- Assists in improving the purity of sugar syrup by eliminating suspended solid contaminants.
- Assists in the efficient separation of solids from liquids in the process of sugar manufacturing.
- Can help achieve reliable filtration outcomes with the right process parameters being employed.
- Assists in preparing the filtered syrup for further processing steps.
- Ideal for use in continuous industrial manufacturing processes based on the chosen configuration and process parameters.
- Can minimize the amount of suspended matter in the syrup and allow for cleaner processing.
- Provides an efficient means of filtration in sugar mills and syrup processing plants.
- The equipment configuration can be chosen based on the processing capacity and filtration needs.
- Assists in achieving better control over the filtration process in sugar processing operations.
- Can provide reliable filtration solutions if properly selected, installed, operated, and maintained.
Sugar Syrup Filter Press Manufacturer in India
Akshar Engineering Works is the Sugar Syrup Filter Press Manufacturer in India, providing industrial filtration equipment for the sugar filtration process and other similar applications requiring clarification of syrup. We at Akshar Engineering Works have been engaged in manufacturing of industrial filtration equipment since 1996 and we have built expertise in industrial filtration equipment manufacture in terms of practical engineering, quality of equipment and application requirements. Our Sugar Syrup Filter Press is designed to facilitate separation of suspended impurities from sugar syrup for better clarification before processing.
At Akshar Engineering Works, as an experienced Sugar Syrup Filter Press Manufacturer in India, we give importance to manufacturing quality, material selection, equipment configuration and operational reliability of equipment. Our manufacturing facility located at Chhatral GIDC, Gujarat forms the base of our manufacturing activities for industrial filtration equipment. Our objective is to first understand customer needs and then find out equipment specifications suited for particular applications.
Sugar Syrup Filter Press Supplier in India
We, Akshar Engineering Works, are a Sugar Syrup Filter Press Supplier in India. Our services are meant for the companies that need a filter press to separate particles from the sugar syrup during production processes. The sugar syrup could contain impurities that should be separated before the liquid goes through further production processes. A properly selected filter press can help in separation of these impurities and filtration under certain conditions. Our equipment solutions are meant for sugar producers, sugar syrup manufacturers, and other companies interested in filtration solutions.
Being a Sugar Syrup Filter Press Supplier in India, our main concern is to provide our customers with the proper information and help them select an appropriate equipment configuration according to their process needs. Our considerations include capacity, material of construction, operating temperature, pressure, and the level of required liquid clarification. Our company Akshar Engineering Works is located in Chhatral GIDC, Gujarat. Our target clients are the industrial companies in Gujarat, Maharashtra, Telangana, Andhra Pradesh, Kerala, and in other regions of India.
Sugar Syrup Filter Press Trader in India
Akshar Engineering Works is a supplier for industrial buyers that are looking for Sugar Syrup Filter Presses in India for various purposes including sugar processing, clarification of syrup and more. As part of the sugar manufacturing process, filtering is very useful in separating suspended impurities from syrup prior to its further processing. Choosing an appropriate filter press could be useful in ensuring sufficient clarity of liquid depending on syrup qualities and plant operation conditions.
We assist our clients in exploring possibilities of implementing a filtering system by providing information and assistance based on specific needs of our clients and their production facilities. For customers looking for a Sugar Syrup Filter Press Trader in India, Akshar Engineering Works offers relevant product information and assistance in finding the right solution that depends on viscosity, temperature, pressure, volume of processing and suspended impurities of syrup. Located in Chhatral GIDC, Gujarat, we work with industrial clients all over India and seek long-term cooperation.
Liquid Syrup Plant

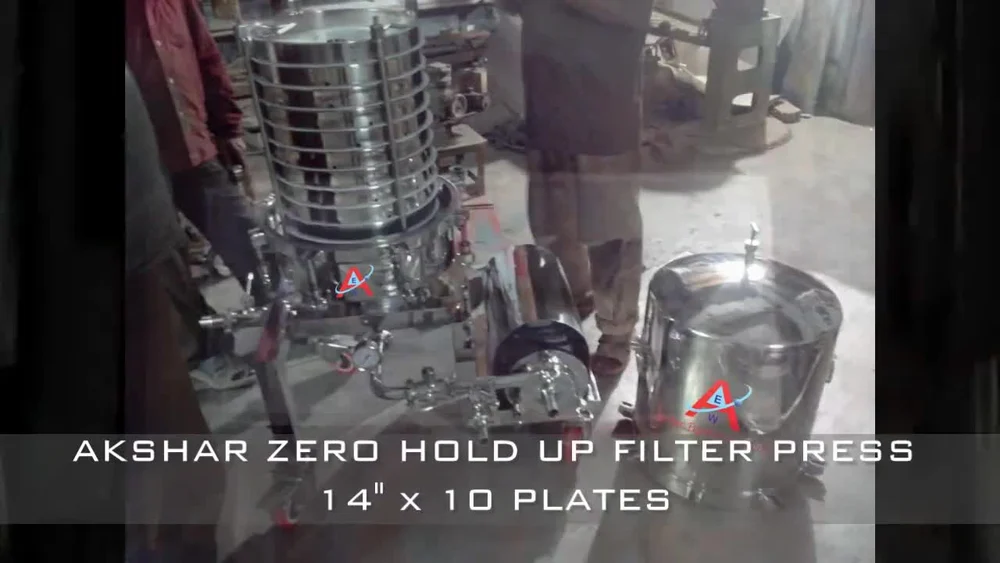

Zero Hold Filter Press
Minimum Order Quantity: 1 Unit
| Filtration Capacity | 1-500 litres/hr, 1000-2000 litres/hr |
|---|---|
| No. Of Plates | 8 Plates |
| Body Material | SS316 |
| Filter Media | Filter Cloth |
| Max Pressure | 5 Bar |
| Automation Grade | Semi-Automatic, Automatic |
| No Of Plates | 10-20 |
| Filter Area (square meter) | <100 |
| Inlet Connection | 1 inch |
| Outlet Connection | 1 inch |
| Max Pressure (Mpa) | 5kg/cm2 |
Product details
- AKSHAR ENGINEERING WORKS range of Filter Press is used for wide range of applications by several industries like Pharma, bulk drugs, distilleries, beverages & other industries.
- There are various combinations available in size & number of plates to give different filtration area 8 cake holding capacities to meet your process requirements. The work man ship, finish & make of components ensure best quality to meet the industries requirements.
- The Cartridge assembly consists of plates, perforated screens, spacers and fitter media. Interlocking spacers internally form single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet.
- The liquids spreads out equally on each plate fitted with filter media. Solids remain on filter media and clear. filtrate flows through precisely made holes on sides of plates and collects in the shell, which then comes out through the outlet.
- In this process, solids are evenly distributed on each plate. The cake is then cleaned from the filter material and used again for filtration process.

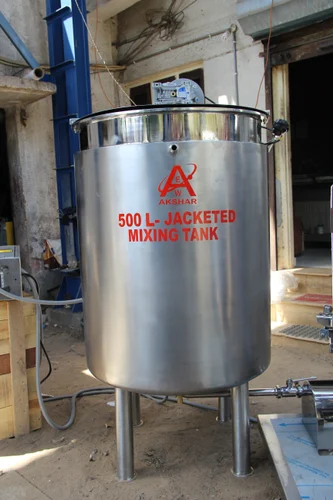

Sugar Syrup Mixing Vessel
Minimum Order Quantity: 1 Unit
| Material | Stainless Steel |
|---|---|
| Capacity | 100-10000 LTRS |
| Max Design Pressure | 0-10 bar |
| Features | Insulated |
| Design Type | Standard, Customized |
Product details
Ideal solution to the pharmaceutical industry for the production of oral liquids. The
process consists of Sugar syrup preparation. Ingredient Mixing and Storage with product
distribution piping. Range of plant covers from 50 L to 15000 L with various options in
top and bottom entry agitators for mixing and homogenizing of syrup & suspensions.
Product contact parts are SS 316 / SS 316L with option of jacketed vessels and heating
system suitable for steam as well as electrical.
AKSHAR ENGINEERING WORKS
Liquid Manufacturing Plant Consist the Following equipments and accessories:
- Sugar Syrup Vessel
- Filter Press
- Manufacturing Vessel
- Transfer Pump
- Storage Vessel
- Transfer Pump
- Piping To Connect All Above Equipments
- Working Platform
- Control Pump
This system consists of a closed circuit manufacturing facility from feeding of Sugar / Water Phase to loading the Volumetric Liquid Filling Machine.
- The Sugar and Water, are load with vacuum system or by mechanical system or manually.
- The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating ( In small model ) / steam heating facility (In bigger size model ) .
The sugar syrup is prepared at required temperature & are transferred to Manufacturing Vessel by vacuum or by transfer pump.
The product during emulsion formation is re-circulated through In-Line Homogenizer or Liquid Transfer Pump.( Optional Facility )
The Pump also discharges the product in the Storage Vessel.
The Storage Vessel is then taken to the filling area (if it is small capacity) and is connected to again Liquid Transfer Pump. Or Storage Vessel remains fixed (In bigger size) & pump transfer the Liquids in the float tank which is connected with filling machine.
The entire Plant can be operated by centralized operating panel by one operator.
The plant is equipped with an electrical control panel with digital temperature indicators / controllers and digital timers.
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Delivery Time: 60 DAYS

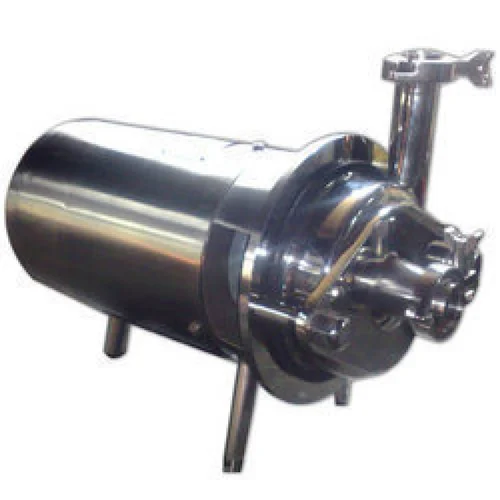

SS Transfer Pump
Minimum Order Quantity: 1 Number
| Max Flow Rate | 3000 LPH |
|---|---|
| Head | 20FT |
| Brand | AKSHAR PUMP |
| Model | 1HP CENTRIFUGAL PUMP |
| Max Motor Rpm | 2880 RPM |
Product details
Our range of Stainless Steel Transfer Pump with trolley is widely used for transfer of
liquids and viscose products. The pump is positive single screw type with SS rotor.
Centrifugal pump and is renowned for high-end features such as corrosion resistance,
abrasion resistance and improved efficiency. We offer these pumps at market leading
prices.
Specification:
- Size: As per requirement
- Pump: S.S.316 & S.S.304 centrifugal
- Impeller: S.S. Blades
- Capacity: As per requirement
- Motor: As per requirement
- Starter: Flame Proof on and off switch, Non Flame Proof Also
- Shaft: S.S. 304 & S.S.316
- Seal: TC/TC
- Working Pressure: Depends on the size and head of the pump
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)

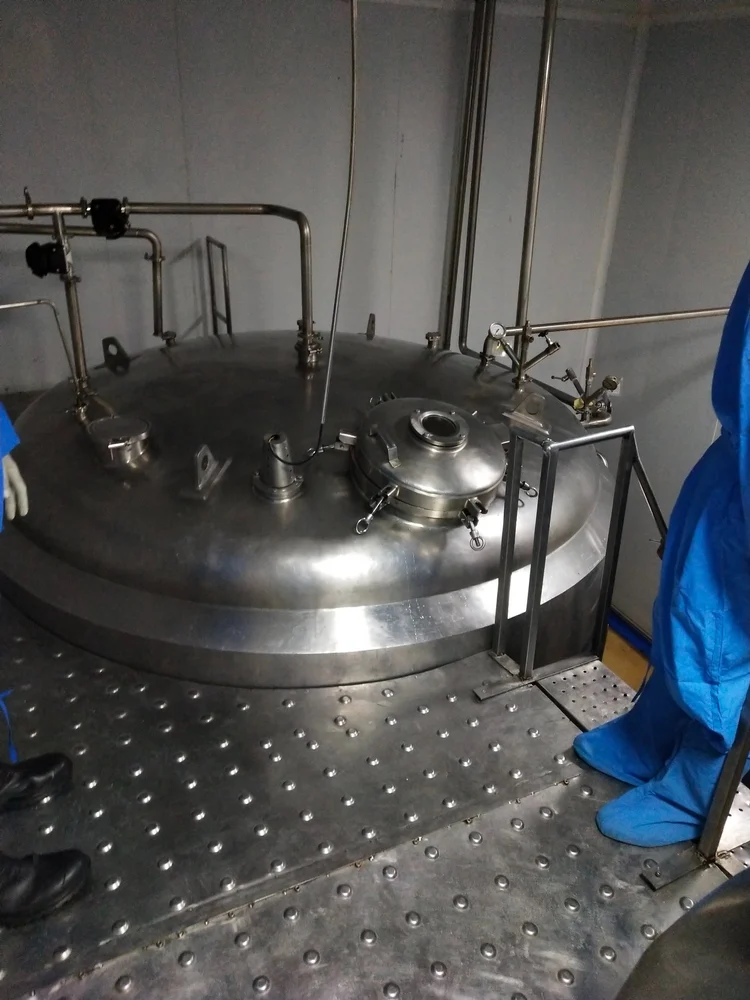

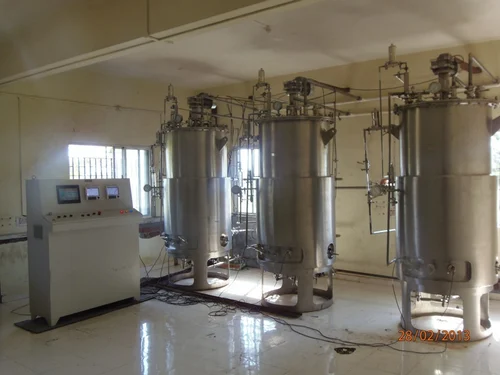

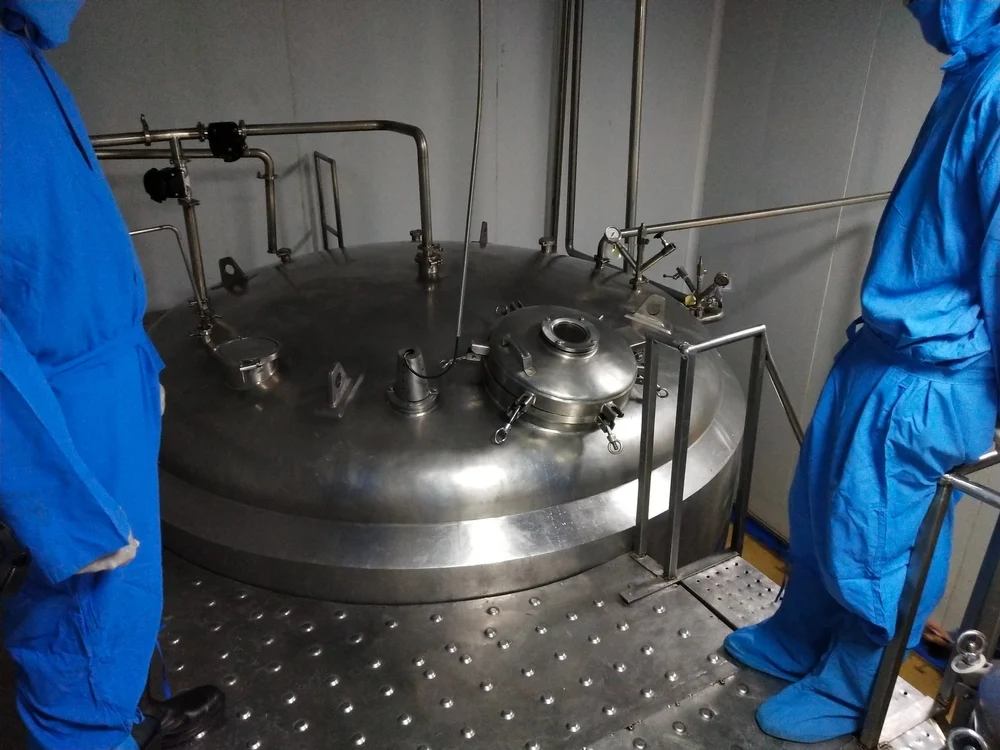

Automatic Liquid Manufacturing Vessel
Minimum Order Quantity: 1 Unit
| Capacity | 1000 LTRS |
|---|---|
| Design | Customized, Standard |
| Automatic Grade | Semi-Automatic, Automatic |
| Usage/Application | PHARMA LIQUID. SYRUP, API |
| Material | SS 316 |
| Automation Grade | Automatic |
| Contact Parts | SS 316 |
Product details
AKSHAR ENGINEERING WORKS Liquid Manufacturing Plant Consist the Following equipments and accessories:
- Sugar Syrup Vessel
- Filter Press
- Manufacturing Vessel
- Transfer Pump
- Storage Vessel
- Transfer Pump
- Piping To Connect All Above Equipments
- Working Platform
- Control Pump
SALIENT FEATURES OF LIQUID SYRUP MANUFACTURING PLANT
- The Plant is designed to be operated only by one operator and one helper.
- All material transfers are done by vacuum or by transfer pumps.
- All the vessels are CGMP (paint free construction)
- The gaskets used are of silicon (food grade).
All contact parts are of S.S. 304 quality material (SS316 provided on demand) &
finished to class 4B (Mirror) finish and are crevice free.
The entry of stirrer &
high speed emulsifier are from top. In-line Emulsifier ( as per customer choice )
provided on demand. ( Optional )
All vessels are suitable for internal pressure of
1 Kg. / Sq. cm. and hence can be sterilized.
All pipes, pipe fittings and
valves are of SS304 / SS316 ( as per customer requirement) seamless quality, internally
electro polished, with tri-clover ended joints.
The entire plant is equipped
with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP
equipment.
All values of temperature & time of the plant are indicated digitally
on the control panel. Ampere indicates on Ampere meters.
A micro processor based
automatic operating plant can be designed as per requirement. (Optional )
All the inlet & outlet connections are provided with tri clover joints,
which are very easy for cleaning & replacement.
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Delivery Time: 60 DAYS

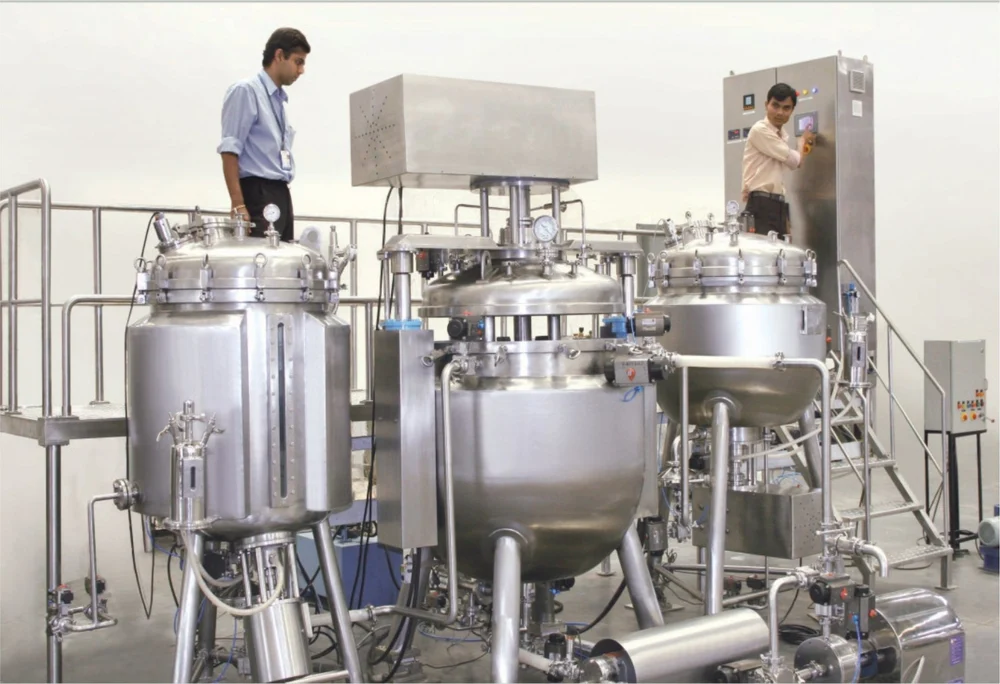

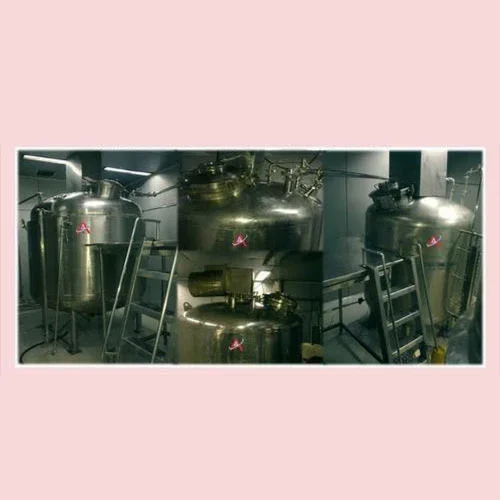

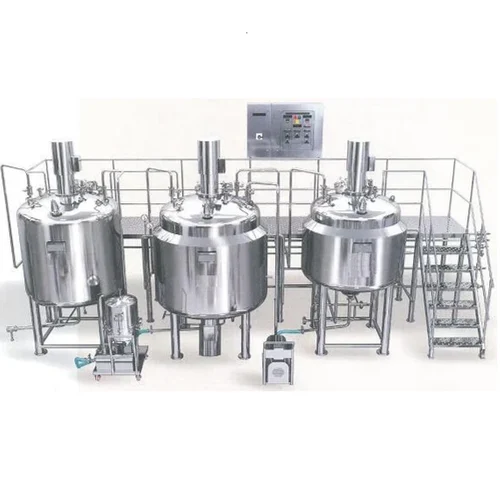

Liquid Manufacturing Plant
Minimum Order Quantity: 1 Unit
| Capacity | 100 LTRS |
|---|---|
| Automation Grade | Automatic |
| Design | Standard, Customized |
| Automatic Grade | Semi-Automatic, Automatic |
| Contact Parts | SS 316 |
Product details
Our organization is counted amongst the most distinguished manufacturers, suppliers, traders and exporters of Liquid Manufacturing Plant. To fulfill the demands and needs of customers, all our products are provided in various models and designs at most competitive prices. In addition to this, all our products can be customized as per the demands and specifications provided by customers.Features:
- Sturdy construction
- Longer service life
- Fine finish
AKSHAR ENGINEERING WORKS Liquid Manufacturing Plant Consist the Following equipments and accessories:
- Sugar Syrup Vessel
- Filter Press
- Manufacturing Vessel
- Transfer Pump
- Storage Vessel
- Transfer Pump
- Piping To Connect All Above Equipments
- Working Platform
- Control Pump
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Delivery Time: 4 MONTHS
Oral Liquid Manufacturing Plant
Minimum Order Quantity: 1 Unit
| Capacity | 100-10000 LTRS |
|---|---|
| Automatic Grade | Semi-Automatic |
| Design | Customized |
| Automation Grade | Automatic |
| Contact Parts | SS 316 |
Product details
We are one of the leading organizations that is engaged in manufacturing, supplying, trading and exporting Oral Liquid Manufacturing Plant. Manufactured using quality components and spare parts, these plants are designed in accordance with international quality standards and norms. Also, these products can be customized as per the specifications laid down by our esteemed patrons.Features:
- Tough construction
- Longer functional life
- Outstanding performance
AKSHAR ENGINEERING WORKS Liquid Manufacturing Plant Consist the Following equipments and accessories:
- Sugar Syrup Vessel
- Filter Press
- Manufacturing Vessel
- Transfer Pump
- Storage Vessel
- Transfer Pump
- Piping To Connect All Above Equipments
- Working Platform
- Control Pump
Additional Information:
- Item Code: 50L-15000L
- Pay Mode Terms: T/T (Bank Transfer)
- Delivery Time: 4 MONTHS

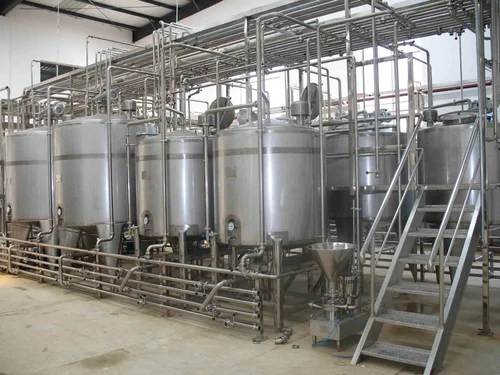

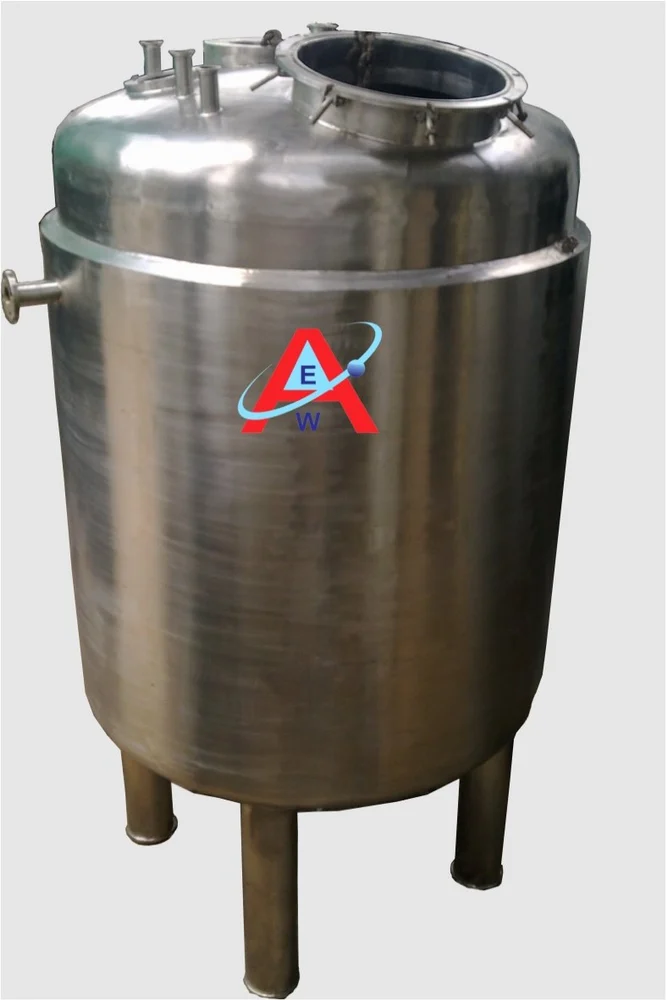

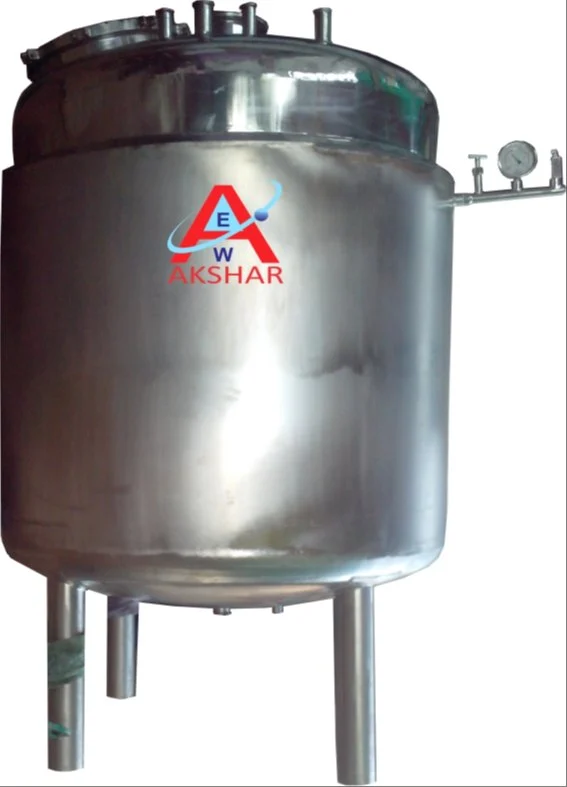

Sugar Syrup Manufacturing Vessels
Minimum Order Quantity: 1 Unit
| Capacity | 0-20 L, 20-100 L, 100-500 L, 500-1000 L, 1000-10000L, >10000 L |
|---|---|
| Automation Grade | Semi-Automatic |
| Material | Stainless Steel |
| Features | Verical Orientation, High Temperature Resistance, Level/Pressure Indicator, Insulated |
| Max Design Pressure | 0-10 bar |
Product details
Ideal solution to the pharmaceutical industry for the production of oral liquids. The
process consists of Sugar syrup preparation. Ingredient Mixing and Storage with product
distribution piping. Range of plant covers from 50 L to 15000 L with various options in
top and bottom entry agitators for mixing and homogenizing of syrup & suspensions.
Product contact parts are SS 316 / SS 316L with option of jacketed vessels and heating
system suitable for steam as well as electrical.
AKSHAR ENGINEERING WORKS
Liquid Manufacturing Plant Consist the Following equipments and accessories:
- Sugar Syrup Vessel
- Filter Press
- Manufacturing Vessel
- Transfer Pump
- Storage Vessel
- Transfer Pump
- Piping To Connect All Above Equipments
- Working Platform
- Control Pump
This system consists of a closed circuit manufacturing facility from feeding of Sugar / Water Phase to loading the Volumetric Liquid Filling Machine.
- The Sugar and Water, are load with vacuum system or by mechanical system or manually.
- The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating (In small model) / steam heating facility (In bigger size model ) .
The sugar syrup is prepared at required temperature & are transferred to
Manufacturing Vessel by vacuum or by transfer pump.
The product during emulsion
formation is re-circulated through In-Line Homogenizer or Liquid Transfer Pump.(
Optional Facility )
The Pump also discharges the product in the Storage Vessel.
The Storage Vessel is then taken to the filling area (if it is small
capacity) and is connected to again Liquid Transfer Pump. Or Storage Vessel remains
fixed (In bigger size) & pump transfer the Liquids in the float tank which is connected
with filling machine.
The entire Plant can be operated by centralized operating
panel by one operator.
The plant is equipped with an electrical control panel with
digital temperature indicators / controllers and digital timers.
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Delivery Time: 60 days
Liquid Manufacturing Plant
Minimum Order Quantity: 1 Unit
| Capacity | 500 LTRS |
|---|---|
| Design | Customized, Standard |
| Automatic Grade | Semi-Automatic, Automatic |
| Automation Grade | Automatic |
| Contact Parts | SS 316 |
Product details
We are highly appreciated in the international market for our qualitative range of
Injection Liquid Manufacturing Plant. Designed to perfection, all the offered
products are manufactured using quality components and material. Confirm to
international quality standards and norms, these plants are provided to customers in
various configurations at market leading prices.
Features:
- Hassle-free performance
- Less maintenance
- Longer functional life
AKSHAR ENGINEERING WORKS Liquid Manufacturing Plant Consist the Following equipments and accessories:
- Sugar Syrup Vessel
- Filter Press
- Manufacturing Vessel
- Transfer Pump
- Storage Vessel
- Transfer Pump
- Piping To Connect All Above Equipments
- Working Platform
- Control Pump
This system consists of a closed circuit manufacturing facility from feeding of Sugar / Water Phase to loading the Volumetric Liquid Filling Machine.
- The Sugar and Water, are load with vacuum system or by mechanical system or manually.
- The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating ( In small model ) / steam heating facility (In bigger size model ) .
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Delivery Time: 4 MONTHS

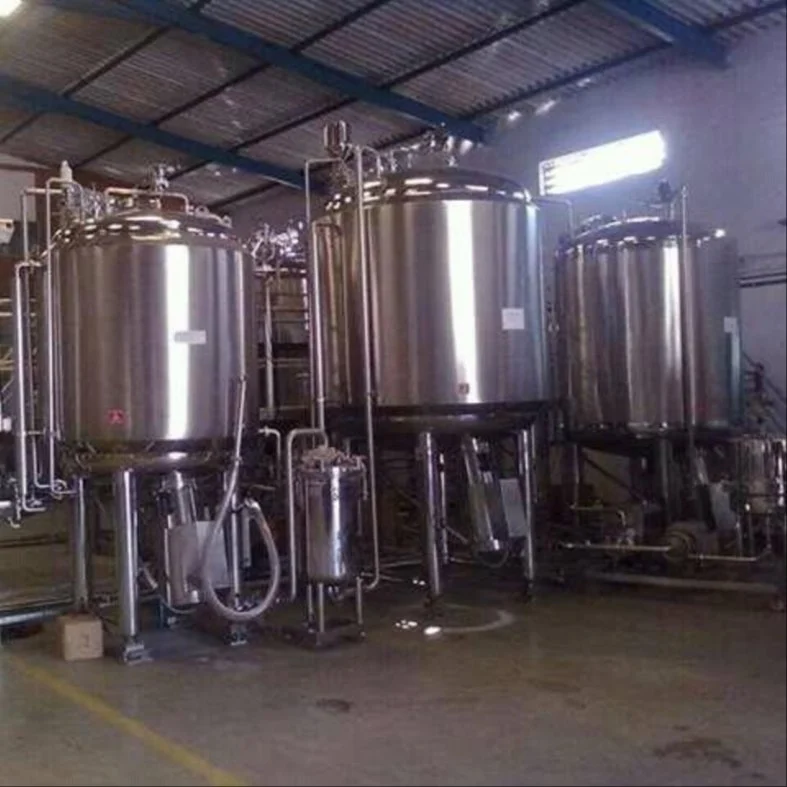

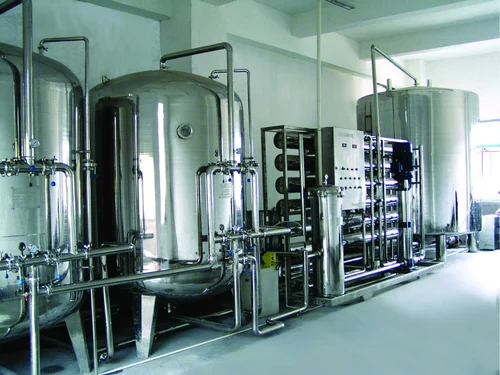

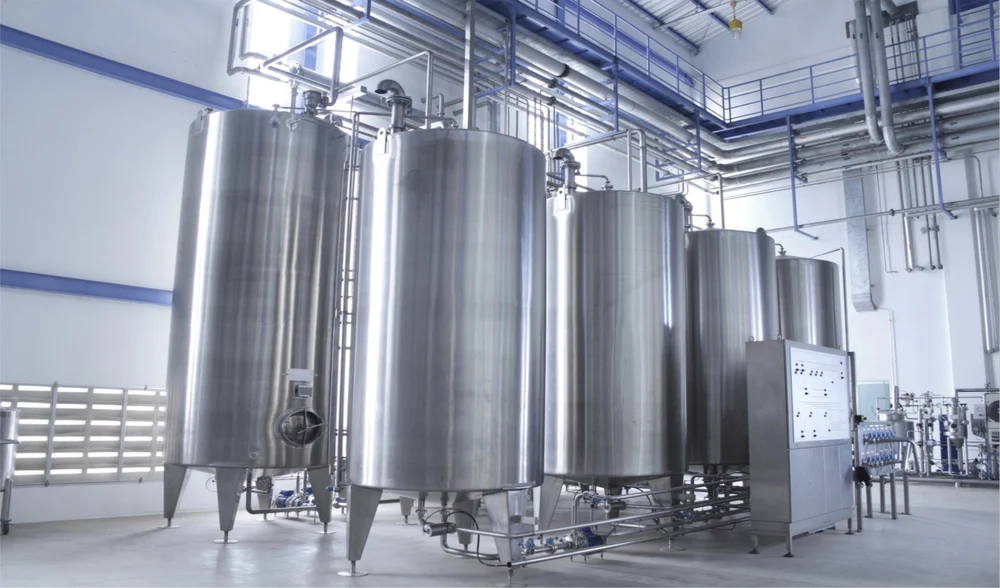

Syrup Manufacturing Tank
Minimum Order Quantity: 1 Unit
| Capacity | 1000 LTRS |
|---|---|
| Storage Capacity(L) | 1000 L |
| Storage Capacity | 1000 L |
| Material | Stainless Steel |
| Tank Orientation | Vertical |
| I Deal In | New Only |
Product details
Ideal solution to the pharmaceutical industry for the production of oral liquids. The
process consists of Sugar syrup preparation. Ingredient Mixing and Storage with product
distribution piping. Range of plant covers from 50 L to 15000 L with various options in
top and bottom entry agitators for mixing and homogenizing of syrup & suspensions.
Product contact parts are SS 316 / SS 316L with option of jacketed vessels and heating
system suitable for steam as well as electrical.
AKSHAR ENGINEERING WORKS
Liquid Manufacturing Plant Consist the Following equipments and accessories:
- Sugar Syrup Vessel
- Filter Press
- Manufacturing Vessel
- Transfer Pump
- Storage Vessel
- Transfer Pump
- Piping To Connect All Above Equipments
- Working Platform
- Control Pump
This system consists of a closed circuit manufacturing facility from feeding of Sugar / Water Phase to loading the Volumetric Liquid Filling Machine.
- The Sugar and Water, are load with vacuum system or by mechanical system or manually.
- The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating (In small model) / steam heating facility (In bigger size model ) .
The sugar syrup is prepared at required temperature & are transferred to
Manufacturing Vessel by vacuum or by transfer pump.
The product during emulsion
formation is re-circulated through In-Line Homogenizer or Liquid Transfer Pump.(
Optional Facility )
The Pump also discharges the product in the Storage Vessel.
The Storage Vessel is then taken to the filling area (if it is small
capacity) and is connected to again Liquid Transfer Pump. Or Storage Vessel remains
fixed (In bigger size) & pump transfer the Liquids in the float tank which is connected
with filling machine.
The entire Plant can be operated by centralized operating
panel by one operator.
The plant is equipped with an electrical control panel with
digital temperature indicators / controllers and digital timers.
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
- Delivery Time: 30 DAYS
Syrup Manufacturing Plant
Minimum Order Quantity: 1 Unit
| Capacity | 100-10000 LTRS |
|---|---|
| Type of Machine | Sugar Syrup Making Machine |
| Phase | 3 PHASE |
| Mixing Speed | 50 RPM |
Product details
Our clients can avail from us an eminent range of Syrup Manufacturing Plant. Widely demanded by customers throughout the nation, these products are available in different models and sizes at reasonable prices. Also, our expert quality controllers thoroughly check all the products on various parameters to ensure flawlessness.Features:
- Easy to install
- Longer service life
- Rust-proof
This system consists of a closed circuit manufacturing facility from feeding of Sugar / Water Phase to loading the Volumetric Liquid Filling Machine.
- The Sugar and Water, are load with vacuum system or by mechanical system or manually.
- The Sugar Syrup Vessel is supplied with high speed stirrer & electrical heating ( In small model ) / steam heating facility (In bigger size model ) .
- The sugar syrup is prepared at required temperature & are transferred to Manufacturing Vessel by vacuum or by transfer pump.
- The product during emulsion formation is re-circulated through In-Line Homogenizer or Liquid Transfer Pump.( Optional Facility )
- The Pump also discharges the product in the Storage Vessel.
- The Storage Vessel is then taken to the filling area (if it is small capacity) and is connected to again Liquid Transfer Pump. Or Storage Vessel remains fixed (In bigger size) & pump transfer the Liquids in the float tank which is connected with filling machine.
- The entire Plant can be operated by centralized operating panel by one operator.
- The plant is equipped with an electrical control panel with digital temperature indicators / controllers and digital timers.
Additional Information:
- Item Code: 50L-15000L-SM
- Pay Mode Terms: T/T (Bank Transfer)
